GL-L Series

Details

Hits: 29020 29020

GL/L Series (196 - 700 MBTU)

Low pressure 2" inclined water tube boiler for commercial steam and hydronic heating applications.

The GL-L is a rugged inclined watertube steel boiler used for hydronic heating, steam heating and steam process applications. A favorite for 100% makeup water applications. The welded steel 2" watertube design eliminates threat of thermal shock. Ideal for bakeries, micro breweries, health spas, canneries, restaurants, plus humidification, and many other small low pressure steam applications.

Range: 4 to 16 HP, 15 PSI steam or 30 PSI water
Fuels: #2 Oil, Natural or LP gas, Dual fuel

Features

High quality watertube construction
80% combustion efficiency
Optional tankless coils available from 170 to 610 GPH

Columbia WL Series

Details

Hits: 24499 24499

Columbia's WL Series is the nation's most versatile commercial boiler, and is ideal for schools, hospitals, office buildings, apartments, bakeries, greenhouses, laundries and laundromats, health clubs, light industrial structures, and many other applications. The rugged 9 gage thickness watertube and waterleg welded construction eliminates the danger of thermal shock, making the WL a favorite for 100% feedwater make-up applications in humidification and bakeries. Its compact dimensions (34-1/2" through the WL-140; 40-1/2" on the WL-180) permits installation through narrow doors and passageways. Wherever you need steam or hydronic heating, instantaneous clean hot water, or low-pressure steam processing, the WL is the perfect choice.

Range: 20 to 60 HP, 15 PSI steam or 30 PSI water.
Fuels: #2 Oil, Natural or LP gas, Dual fuel

Service and Installation in Connecticut - 203-934-3066

Features
Water-tube - Water leg construction
Compact Dimensions
80% plus combustion efficiency
Coil access plates for optional tankless coils
Supply outlet flange WL90 through WL180
Heavy gage inclined 2" water tube design
Water leg design for rapid heat-up time
Attractive insulated steel jacket
Large cleanout door for fireside cleaning

Columbia CWH MPHX Water Heater Series

Details

Hits: 13246 13246

Columbia CWH Series: Instantaneous indirect heating, utilizing copper coils, does away with the destructive corrosive action of raw water which occurs in direct-fired heaters and insures a clean, rust-free hot water supply at all times. Ideal for laundromats, fitness clubs, swimming pools, motels, car washes, restaurants, hotels, apartment buildings and coin-op laundries. Two different styles to choose from: CWH and MPHX.

Continuous Output Range: 170 to 2460 gpm at 100 F rise (Maximum Output Temperature: 140-160F)
Fuels: #2 Oil, Natural or LP gas, Dual fuel

Installation and Service in Connecticut 203-934-3066

Features

Large volume instantaneous tankless coils

Heavy boiler plate throughout

Heavy gage inclined water tube or fire tube

Attractive powder coated steel jacket

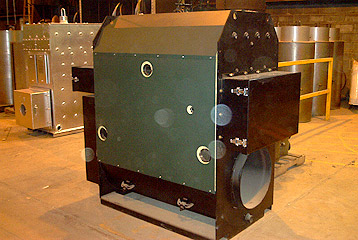

Multi-Pass Horizontal Boilers

Details

Hits: 14399 14399

Columbia Multi-Pass Horizontal Boilers are competitively priced, narrow in width & easily serviced. This modified Scotch, three-pass fire tube model is designed for use as a 15 PSI steam or 30 PSI water unit. The sizes range from 5 BHP to150 BHP, natural gas or LP gas, #2 oil, dual fuel or biogas fired. Ideal for: breweries, distilleries, schools, apartments, bakeries, brewpubs, laundromats, dairies and many more applications.

Range: 5 to 150 HP, 15 PSI steam or 30 PSI water
Fuels: #2 Oil, Natural or LP gas, Dual fuel, Methane / Biogas

Installation and Service in Connecticut - 203-934-3066

Features
32 1/2" compact width (Size 5-80)
Bottom hand holes for thorough cleanout
Quick open fireside cleanout doors
Optional hot water coils 780 GPH to 2460 GPH
83%+ efficiencies, up to 90% with high efficiency package

Boiler Feed Systems

Details

Hits: 11483 11483

Heavy gauge steel construction.
Horizontal and vertical configurations
Float operated make-up valve.
High suction pipe prevents sediment from entering pump, increasing life of impeller and raceway.
